#Air curtains

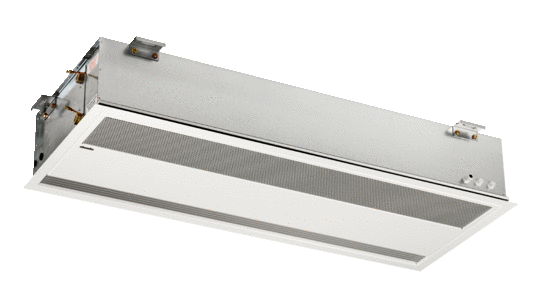

Cassette UniLine
Door air curtains for grid cassette ceilings
The Cassette UniLine door air curtains ensure effective cold air screening and were specially developed for use in grid cassette ceilings.
- Heating:
Efficient cold air screening
The Cassette UniLine reduces energy losses from the building through its effective cold air screening and increases comfort in the entrance area.
Ceiling installation
Installation in a suspended ceiling is easily possible. The Cassette UniLine can optionally be integrated into a 600 mm or 625 mm grid ceiling. Installation in a plasterboard suspended ceiling is also possible.
Model sizes
The door air curtains for grid cassette ceilings are available for two different grid dimensions.
In addition, four different unit lengths are available.
Mounting options
The unit is a ceiling-mounted installation unit and is installed as a cassette in the suspended ceiling. The Cassette UniLine can be integrated either into a 600 mm or 625 mm grid of the suspended ceiling. Installation in a plasterboard suspended ceiling is also possible.
The Cassette UniLine achieves an air discharge height of 2.3 - 3.0 m.
Short delivery times
All standard units of these door air curtains are available for delivery at very short notice.
Easy maintenance
Maintenance is extremely simple: The large-area filter, including frame and intake grille, can be removed with minimal effort . The large revision flap. is also practical. The entire underside of the unit can be opened in just a few simple steps.
Fast payback
UniLine is a price-oriented version for all standard applications: low investment, yet still high performance.
Control options
Electromechanical control
This version is ideal for simple applications. The unit comes with a terminal block to connect the power supply, as well as interfaces to an external BMS or external controller.
KaControl MC
With the integrated KaControl MC control, the Cassette UniLine offers bidirectional communication of up to 10 units within a group/room via CAN bus. With KaControl MC, the unit can be easily integrated into common building management systems such as Modbus RTU, Modbus TCP, BACnet/IP and KNX-TP.
Selection options
Adapt the product to your requirements – these options are available for you to choose from.
Lengths
four different lengths available
Grid dimension
600 x 600 mm or 625 x 625 mm
Colour options
custom colour design possible
EC fan
infinitely variable control
Product finder
With our free calculation program, you can find the product with the right performance data for your project in just a few steps. The official technical data sheet with your individual project values as a PDF for download is then available to you.
