Air outlets

KaMAX

Article no.: 198000035111

Dimensions (WxHxL): 600 mm x 160 mm x 680 mm

Weight: 14.4 kg

EAN: 4031845113927

Overview

Multi Air MiX for ceiling-mounted units, manual level adjustment

Suitable for:

Model size 5

4-way diffuser with circular arrangement of trapezoidally-shaped fins
Fins have a bearing on the inside and outside
Externally centrally adjustable by a manual lever or servo motor with an adjustment lever
Fins are parallel in a horizontal position
As they become more vertical, they incline against each other
Hall air is induced
Temperature stratification is eliminated

The KaMAX diffuser features trapezoidal louvres arranged in a circle, with bearings on the inside and outside. The fins can be adjusted from the outside by means of a manual lever or actuator motor to direct the air as required. The penetration depth of the air can also be adjusted to suit requirements. The KaMAX diffuser thus provides for comfortable air distribution from the ceiling to the occupied zone, even in very high halls and sheds.

The slats are almost horizontal
Air is distributed horizontally under the ceiling and flows in a circle around the KaMAX
Floor-level and ceiling air is entrained
Even air movements occur
Low air velocities in the occupied zone, no draughts and thus greater comfort are achieved

The air can be discharged into the hall at any angle
Thanks to the slightly vertical arrangement of the slats, the percentage of induction air increases directly at the KaMAX air outlet
The entire volume of air in the room is drawn into the air exchange through a strong swirling movement
A direct primary air stream cannot be felt in the occupied zone
As hall air is inducted, the outlet air temperature falls
Intensive mixing of indoor hall air at low air speed takes place with minimal temperature stratification
This produces greater comfort and energy savings

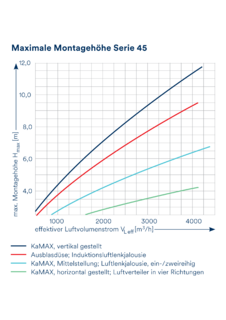

The air is discharged predominantly vertically
In their maximum vertical position, the slats act as nozzles
Air is inducted from all sides, the outlet air temperature significantly falling
Twice the volume of air is moved around 2 m below the KaMAX diffuser
High volumes of air are moved at a low temperature and speed, increasing the penetration depth by up to 30%
This produces greater comfort and energy savings
This discharge position is ideal for the cost-effective heating of very high-ceilinged spaces
