Condensate tray/pump

Condensate drain

Article no.: 324002000410

Dimensions (WxHxL): 107 mm x 155 mm x 200 mm

Weight: 0.5 kg

EAN: 4031845531684

output voltage: 230 V

frequency: 50 Hz

Overview

Alternative to a free drain

Suitable for:

KaCool W AC Fan Coils

For the drainage of condensate from the KaCool W wall-mounted unit. The condensate pump is installed underneath the wall-mounted unit.
The condensate pump consists of the pump unit, float switch and installation accessories. The pump unit features an alarm contact.

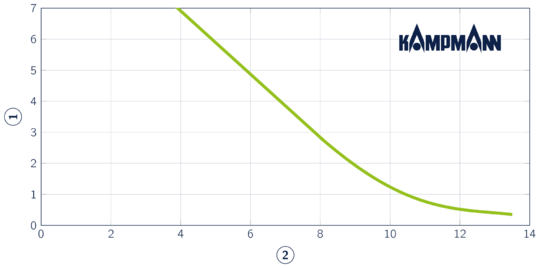

pump output diagram

Further information

① vertical delivery height in [m]

② capacity in [l/h]
