Unit Heaters

Ultra Allround

Article no.: 35400117425800

Use the dropdown menus to quickly and simply adapt the figures to your requirements.

Overview

Organic shape for optimum air flow
Lightweight materials for ease of assembly

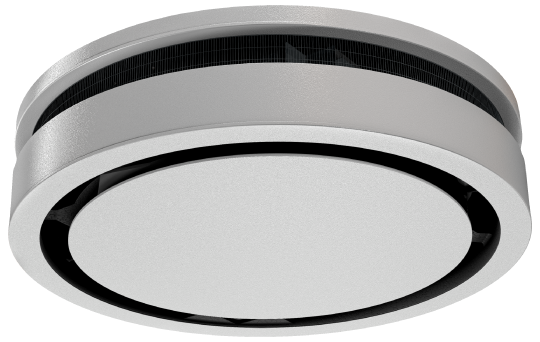

The Ultra Allround is available in two casing versions, powder-coated in a colour of your choice:

Fully cased in a metal housing for a visually striking air conditioning unit
Partially encased and integrated into modern black ceiling constructions for an unobtrusive but modern industrial look

Heating: low-temperature version for operation with very low supply water temperatures
Cooling: maximum possible cooling output, thanks to large-surface circular heat exchanger

Durable, noise-optimised EC radial fan

Continuously variable control for optimum control of the air volume
Easy maintenance through the base of the unit
Motor protection class IP 54

Tool-free access for maintenance of the condensate tray and fan etc.
Base cover with safety mechanism

Plastic condensate tray
Disinfectant-resistant
Can be cleaned from the top of the unit (tool-free access)
The condensate tray can be removed from the underside of the unit

Compact design, without separate float, prevents possible leaks at connections
Extremely quiet pump, lower than 20 dB(A) sound pressure level
Condensate level determined by a capacitive sensor
Delivery height up to 20 m
Alarm contact in the event of a malfunction or too high a water level in the condensate tray
Accessible from the top of the unit (without tools)

Whether simply electromechanical (terminal block), proven via KaControl (KNX, Modbus, BACnet), or with the new Smartboard M: the Ultra Allround can be integrated into any building automation system of your choice.

Calculate performance data

Accessories

Control accessories electromechanical 230 V

Room thermostat

Heating/Cooling, 2- and 4-pipe, 3-stage. Only in conjunction with valves/valve kits with actuator, with OFF/Manual/Automatic fan switchover, 230 V AC, Open/Closed, Surface-mounted, Protection class II, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour similar to RAL 9010 pure white, Type 30155
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922

Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils

Article no.: 196000030155

Details

Clock thermostat

Heating/Cooling, 2- and 4-pipe, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, 1 W, flush-mounted, Protection class II, Protection class IP 30, Colour similar to RAL 9010 pure white, Type 30256
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922

Suitable for: EC units electromechanical, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils

Article no.: 196000030256

Details

Speed controller

continuously variable fan operation, 0-100% presettable, On/Off via room thermostat, surface-mounted protection class IP 54, flush-mounted protection class IP 44, 230 V AC, 0-100%, Surface-mounted, Protection class IP 54, Colour similar to RAL 9010 pure white, made of plastic, Type 30510

Suitable for: EC units electromechanical, 2 ProtecTor Door Air Curtains, 5 UniLine or Tandem Door Air Curtains, 10 TOP or Ultra Unit Heaters, 10 Venkon Fan Coils, 2 KaCool D AF or KaCool W AC Fan Coils

Article no.: 196000030510

Details

Electronic speed controller

microprocessor-controlled control with integrated digital timer, with day, night, week programme, continuously variable fan operation 0 to 100 %, manual or automatic, 0-10 VDC, recirculation air, 230 V AC, Protection class I, Protection class IP 40, including sensor IP 66, Type 30515

Suitable for: EC units electromechanical, 10 TIP, TOP or Ultra Unit Heaters, 10 Venkon Fan Coils, 5 KaCool D AF or KaCool W Fan Coils

Article no.: 196000030515

Details

Climate Controller

Heating/Cooling, 2- and 4-pipe, without Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148941

Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters

Article no.: 196000148941

Details

Climate Controller

Heating/Cooling, 2- and 4-pipe, without Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148942

Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters

Article no.: 196000148942

Details

Climate Controller

Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148943

Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters

Article no.: 196000148943

Details

Climate Controller

Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148944

Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters

Article no.: 196000148944

Details

Thermostats

Industrial thermostat

with setpoint adjustment by tool, with setpoint adjustment by tool, Protection class I, Protection class IP 54, Temperature setting range 5 - 30 °C, Type 30058

Suitable for: ProtecTor Door Air Curtains, Unit Heaters

Article no.: 196000030058

Details

Industrial thermostat

with setpoint adjustment using a dial, with setpoint adjustment using a dial, Protection class I, Protection class IP 54, Temperature setting range 40 °C, Type 30059

Suitable for: ProtecTor Door Air Curtains, Unit Heaters

Article no.: 196000030059

Details

Valve kits

Thermoelectric shut-off valve

as a straight valve body with thermoelectric actuator 230 V / 50 Hz, Connection 1'' kvs value 3.3 m³/h, Type 31911

Suitable for: all unit heaters

Article no.: 153000031911

Details

Control shut-off valve

for automatic flow and temperature control, Connection 1'' kvs value 3.1 m³/h, Type 31950

Suitable for: Model size 4 - 5, TOP or Ultra Unit Heaters, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20

Article no.: 153000031950

Details

Control shut-off valve

for automatic flow and temperature control, Connection 1'' kvs value 4.1 m³/h, Type 31951

Suitable for: Model size 4 - 6, TOP or Ultra Unit Heaters, Min. Flow volume 400 l/h, max. Flow volume 2500 l/h, DN 25

Article no.: 153000031951

Details

Valve actuator kits

Valve actuator kit

Drive T, 24 V AC/DC, 2-point, normally closed, 1 W, Protection class III, Protection class IP 54, Cable length 0.12 m, supplied separately, made of Polyamide

Article no.: 1960TS8P04050010B

Details

Valves

Thermoelectric shut-off valve

as a straight valve body with thermoelectric actuator 24 V AC/DC, 24 V AC/DC, Connection 1'' kvs value 3.3 m³/h, Max. operating pressure 10 bar, Type 30931
Only in conjunction with a KaControl controller!

Article no.: 196000030931

Details

Control shut-off valve

24 V AC/DC, for automatic flow and temperature control, Connection 1'' kvs value 3.1 m³/h, Max. operating pressure 25 bar, Type 30980

Suitable for: Model size 4 - 5, TOP or Ultra Unit Heaters, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20

Article no.: 196000030980

Details

Control shut-off valve

24 V AC/DC, for automatic flow and temperature control, Connection 1'' kvs value 4.1 m³/h, Max. operating pressure 25 bar, Type 30981

Suitable for: Model size 4 - 6, TOP or Ultra Unit Heaters, Min. Flow volume 400 l/h, max. Flow volume 2500 l/h, DN 25

Article no.: 196000030981

Details

Filter

Recirculating air filter element

for direct mounting on the unit inlet with recirculation air units, ISO Coarse 45% (G3) filter

Suitable for: Model size 1 - 2

Article no.: 354000070003

Details

Galvanised steel components

Primary air-pipe connector

round, for the suction-side connection of the Ultra Allround to a round primary air pipe, sendzimir galvanised

Suitable for: Model size 1 - 2

Article no.: 354000070004

Details

Additional colours

surcharge for RAL standard colour

Price per unit.

Suitable for: Ultra Allround Unit Heaters, fully cased

Article no.: 354007010012

Details

surcharge for RAL colour of your choice

Minimum quantity = 5 units per order and colour, The number of units below the minimum quantity must be requested and calculated separately.
Price per unit.

Suitable for: Ultra Allround Unit Heaters, fully cased

Article no.: 354007010022

Details

surcharge for change of colour

of the powder-coating to the colour version quoted., The surcharge includes the conversion and cleaning of the powder-coating to the requested colour and will be charged once per project and call-off order.

Suitable for: Ultra Allround Unit Heaters

Article no.: 354007010010

Details
