Unit Heaters
Ultra
Article no.:
154000962056M1
Overview
• KaControl MC control system for operation via separate touch panel TP 2"
• Room group control of up to ten units via factory-fitted CAN-bus (up to 100 m)
• Demand-led automatic or optional manual fan control
• Freely configurable multifunctional inputs that can be used, for example, to detect temperatures, window contacts, presence detectors, card readers etc.
• Integrated Webserver (Wi-Fi or LAN) for ease of commissioning, parametrisation, trend data analysis etc. on a laptop or mobile device
- Continuously variable EC single-phase whisper-quiet sickle-blade fan (see Fig.)
- High-efficiency due to the aerodynamic design of the rotor housing
- Motor protection class IP 54
- According to DIN ISO 21940-11 for the corresponding fan category; the external rotor motor integrated in the fan impeller is balanced according to ISO 14694
- External rotor motor integrated in the fan impeller
- Complies with Directive (EU) 327/2011 ("LOT 11")
- Heating: low-temperature version for operation with very low water temperatures
- Cooling: highest possible cooling output even with dry cooling by means of round large-surface heat exchanger
Ultra-efficient as a component in a hybrid system: while the Ultra has decentralised temperature control, an air handling unit with small dimensions deals with ventilation and heat recovery. This saves operating costs as all components only work when demand is detected. And you benefit from the reduced size of the air handling unit in terms of investment and installation.
- Ease of access by snap-lock quick-release closure and positioning aid
- External pump sump for visual control through the outlet grille
- Float switch easily accessible – without the need to dismantle the base and condensation tray
- Energy-saving condensate pump even more powerful and quieter with a delivery height of up to 8 m
- Controlled flow of residual water during maintenance – outlet connector in the pump sump
Housing with base cover easily removable for maintenance
The air flows out through six air discharge openings and is guided through air guidance fins. A grid defines their adjustment into six positions.
Calculate performance data
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| A | B | C | D | |
|---|---|---|---|---|
| GWP - Total kg CO2 eq | 2.23E+02 | 3.23E+02 | 2.29E+01 | -7.80E+01 |
| GWP - fossil kg CO2 eq | 2.21E+02 | 3.23E+02 | 2.29E+01 | -7.71E+01 |
| GWP - Biogenic kg CO2 eq | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| GWP - Luluc kg CO2 eq | 1.29E+00 | 6.69E-01 | 2.15E-04 | -8.44E-01 |
| ODP kg CFC-11 eq | 3.22E-06 | 3.43E-06 | 1.48E-08 | -1.18E-06 |
| AP mol H+ eq | 2.63E+00 | 7.11E-01 | 4.84E-03 | -5.49E-01 |
| EP - fresh water kg P eq | 1.56E-02 | 4.65E-02 | 1.46E-05 | -4.01E-03 |
| EP - marine kg P eq | 2.33E-01 | 1.36E-01 | 4.80E-03 | -5.72E-02 |
| EP - country mol N eq | 2.85E+00 | 1.58E+00 | 2.09E-02 | -6.79E-01 |
| POCP kg NMVOC | 1.01E+00 | 5.13E-01 | 7.16E-03 | -2.66E-01 |
| ADPE kg Sb eq | 2.73E-02 | 1.37E-03 | 1.76E-06 | -2.97E-03 |
| ADPF MJ | 3.76E+03 | 5.13E+03 | 9.64E+00 | -1.06E+03 |
| WDP m³ depriv. | -2.63E+01 | 1.63E+01 | 3.48E-01 | -8.11E+00 |
| GWP-GHG kg CO2 eq | 2.23E+02 | 3.25E+02 | 2.47E+01 | -7.82E+01 |
| PM disease inc. | 1.34E-05 | 3.06E-06 | 6.22E-08 | -5.01E-06 |
| IR kBq U-235 eq | 2.97E+02 | 1.88E+01 | 7.77E-03 | -3.58E+00 |
| ETP - FW CTUe | 4.37E+03 | 1.26E+03 | 1.46E+02 | -2.64E+03 |
| HTP - C CTUh | 3.95E-06 | 8.20E-07 | 5.33E-09 | -9.13E-06 |
| HTP - NC CTUh | 2.12E-05 | 2.41E-06 | 4.33E-08 | -3.47E-06 |
| SQP - | 1.21E+03 | 8.67E+02 | 1.23E+01 | -1.68E+02 |
| PERE MJ | 5.40E+02 | 1.22E+03 | 3.58E-01 | -2.40E+02 |
| PERM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT MJ | 5.40E+02 | 1.22E+03 | 3.58E-01 | -2.40E+02 |
| PENRE MJ | 3.76E+03 | 5.13E+03 | 9.64E+00 | -1.06E+03 |
| PENRM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT MJ | 3.76E+03 | 5.13E+03 | 9.64E+00 | -1.06E+03 |
| SM kg | 4.08E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW m³ | -2.54E+01 | 1.61E+01 | 3.60E-01 | -8.52E+00 |
| HWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD kg | 3.24E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR kg | 8.14E+00 | 0.00E+00 | 2.39E+01 | 0.00E+00 |
| MER kg | 4.06E+00 | 0.00E+00 | 7.36E+00 | 0.00E+00 |
| EE (Electrical) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 5.17E+00 |
| EE (Thermal) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 1.38E+02 |
Accessories
Control accessories KaControl MC
Touch Panel TP 2
24 V, Protection class IP 20
Suitable for: all units with control option KaControl -MC1, -MC2
Suitable for: all units with control option KaControl -MC1, -MC2
Article no.:
196003311101
Touch Panel TP 2 Industrie
24 V, 24 V 0.75 W, Surface-mounted, Protection class IP 65, Colour RAL 7035 grey, made of ABS, polycarbonate, Type 3314101
Suitable for: all units with control option KaControl -MC1, -MC2
Suitable for: all units with control option KaControl -MC1, -MC2

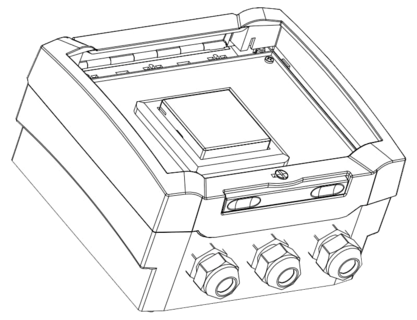

Article no.:
196003314101
Suitable for: all units with control option KaControl MC
Article no.:
196003361103
Suitable for: all units with control option KaControl MC
Article no.:
196003361102
Suitable for: all units with control option KaControl MC
Article no.:
196003361104
Suitable for: all units with control option KaControl MC
Article no.:
196003361101
Suitable for: all units with control option KaControl MC
Article no.:
196003361203
Suitable for: all units with control option KaControl MC
Article no.:
196003361202
Suitable for: all units with control option KaControl MC
Article no.:
196003361204
Suitable for: all units with control option KaControl MC
Article no.:
196003361201
adapter cable
24 V, for the connection of existing 2-point valve actuators, Internal, Protection class IP 20, Cable length 500 mm, Type 3305225
Suitable for: all units with control option KaControl -MC1
Suitable for: all units with control option KaControl -MC1
Article no.:
196003305225
Surface-mounted housing
Complete with cover frame, Surface-mounted, Colour RAL 9010 gloss pure white, made of Thermoplastic, Type 3304111
Suitable for: Touch Panel TP 2
Suitable for: Touch Panel TP 2
Article no.:
196003304111
Surface-mounted housing
Complete with cover frame, Surface-mounted, Colour RAL 9005 matt satin deep black, made of Thermoplastic, Type 3304112
Suitable for: Touch Panel TP 2
Suitable for: Touch Panel TP 2
Article no.:
196003304112
room temperature sensor
to detect the room temperature., Surface-mounted, Protection class IP 20, Colour RAL 9010 pure white, made of Polycarbonat, Type 3321111
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003321111

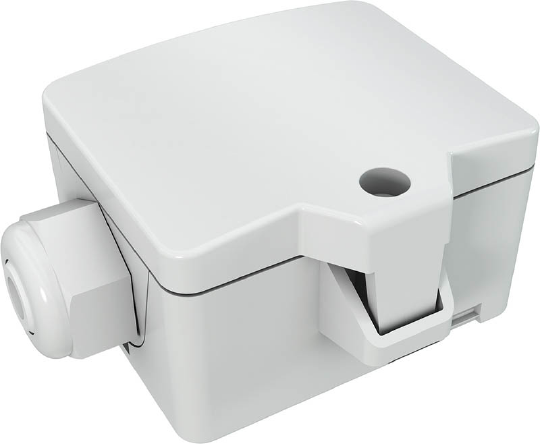

room temperature sensor
to detect the room temperature., Surface-mounted, Protection class IP 65, Colour RAL 9010 pure white, made of Polycarbonat, Type 3321121
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003321121
Valve kits
2-way valve kit
as a straight valve body, Connection 1'', kvs value 3.3 m³/h, Type 31911
Suitable for: all unit heaters
Suitable for: all unit heaters
Article no.:
153000031911
Control shut-off valve
for automatic flow and temperature control, Connection 1'', kvs value 3.1 m³/h, Type 31950
Suitable for: Model size 4 - 5, TOP or Ultra Unit Heaters, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20
Suitable for: Model size 4 - 5, TOP or Ultra Unit Heaters, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20
Article no.:
153000031950
Control shut-off valve
for automatic flow and temperature control, Connection 1'', kvs value 4.1 m³/h, Type 31951
Suitable for: Model size 4 - 6, TOP or Ultra Unit Heaters, Min. Flow volume 400 l/h, max. Flow volume 2500 l/h, DN 25
Suitable for: Model size 4 - 6, TOP or Ultra Unit Heaters, Min. Flow volume 400 l/h, max. Flow volume 2500 l/h, DN 25
Article no.:
153000031951
Valve actuators, supplied loose
Valve actuator kit
Drive T, 24 V AC/DC, 2-point, normally closed, 1.5m connecting line-MB2, PVC, VA10N, 1 W, Protection class III, Protection class IP 54, Cable length 0.12 m, supplied separately, made of Polyamide
Article no.:
1960TS8P24050010B
Repair switch
Repair switch
Enables individual units in a switching group to be decommissioned by voltage disconnection. The thermal contacts are bridged in advance, and subsequently opened on the motor side so that the other units in the group can continue to operate without interruption., EC, Protection class IP 65, 25 A, supplied separately, Type 30160
Suitable for: all unit heaters, air curtains with EC-motors
Suitable for: all unit heaters, air curtains with EC-motors
Article no.:
196000030160
Filter
calculation-relevant accessory
Recirculating air filter element
calculation-relevant accessory
for direct mounting on the unit inlet with recirculation air units, ISO Coarse 45% (G3) filter
Cannot be used with under-ceiling units!
Suitable for: Model size 96
Cannot be used with under-ceiling units!
Suitable for: Model size 96
Article no.:
154000066050
Panel/grille
Recirculating air grille
Grid dimensions 625 x 625 mm, powder coated, Colour RAL 9016 traffic-white
Suitable for: Model size 73 - 96
Suitable for: Model size 73 - 96
Article no.:
154000060988
Components for installation in acoustic grid suspended ceilings
calculation-relevant accessory
Connection frame
calculation-relevant accessory
square, as a transition from the Ultra to the ongoing duct system, sendzimir galvanised
Suitable for: Model size 96, attachment parts with outside frame dimensions (W x H): 700 x 700mm and 700 x 350mm
Suitable for: Model size 96, attachment parts with outside frame dimensions (W x H): 700 x 700mm and 700 x 350mm
Article no.:
198000066002
90-degree reducing elbow
calculation-relevant accessory
extended, square to rectangular, sendzimir galvanised
Suitable for: Model size 96, attachment parts with outside frame dimensions (W x H): 700 x 700mm and 700 x 350mm
Suitable for: Model size 96, attachment parts with outside frame dimensions (W x H): 700 x 700mm and 700 x 350mm
Article no.:
198000066104
90-degree air intake elbow
calculation-relevant accessory
with air intake grille, mounting for filter insert, rectangular, ISO Coarse 45% (G3) filter
Suitable for: Model size 85 - 96, attachment parts with outside frame dimensions (W x H): 600 x 350mm and 700 x 350mm
Suitable for: Model size 85 - 96, attachment parts with outside frame dimensions (W x H): 600 x 350mm and 700 x 350mm
Article no.:
198000060105
90° air intake bend with differential pressure switch
calculation-relevant accessory
with intake grille, filter insert and differential pressure switch for filter monitoring, rectangular, ISO Coarse 45% (G3) filter
Suitable for: Model size 85 - 96
Suitable for: Model size 85 - 96
Article no.:
198000060105D0
Filter insert
calculation-relevant accessory
complete with filter, ISO Coarse 45% (G3) filter
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
Article no.:
198000060126
Replacement filter
for filter insert, ISO Coarse 45% (G3) filter, 1 set = 5 piece(s)
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
Article no.:
198000060127
Additional colours
Surcharge for RAL colour of your choice
matt gloss level
Price per unit.
Suitable for: Ultra Unit Heaters
Price per unit.
Suitable for: Ultra Unit Heaters
Article no.:
154007010022
