Unit Heaters
Ultra
Article no.:
154000962058C1
Overview
- Continuously variable EC single-phase whisper-quiet sickle-blade fan (see Fig.)
- High-efficiency due to the aerodynamic design of the rotor housing
- Motor protection class IP 54
- According to DIN ISO 21940-11 for the corresponding fan category; the external rotor motor integrated in the fan impeller is balanced according to ISO 14694
- External rotor motor integrated in the fan impeller
- Complies with Directive (EU) 327/2011 ("LOT 11")
- Heating: low-temperature version for operation with very low water temperatures
- Cooling: highest possible cooling output even with dry cooling by means of round large-surface heat exchanger
Ultra-efficient as a component in a hybrid system: while the Ultra has decentralised temperature control, an air handling unit with small dimensions deals with ventilation and heat recovery. This saves operating costs as all components only work when demand is detected. And you benefit from the reduced size of the air handling unit in terms of investment and installation.
- Ease of access by snap-lock quick-release closure and positioning aid
- External pump sump for visual control through the outlet grille
- Float switch easily accessible – without the need to dismantle the base and condensation tray
- Energy-saving condensate pump even more powerful and quieter with a delivery height of up to 8 m
- Controlled flow of residual water during maintenance – outlet connector in the pump sump
Housing with base cover easily removable for maintenance
The air flows out through six air discharge openings and is guided through air guidance fins. A grid defines their adjustment into six positions.
Calculate performance data
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| A | B | C | D | |
|---|---|---|---|---|
| GWP - Total kg CO2 eq | 2.23E+02 | 3.23E+02 | 2.29E+01 | -7.80E+01 |
| GWP - fossil kg CO2 eq | 2.21E+02 | 3.23E+02 | 2.29E+01 | -7.71E+01 |
| GWP - Biogenic kg CO2 eq | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| GWP - Luluc kg CO2 eq | 1.29E+00 | 6.69E-01 | 2.15E-04 | -8.44E-01 |
| ODP kg CFC-11 eq | 3.22E-06 | 3.43E-06 | 1.48E-08 | -1.18E-06 |
| AP mol H+ eq | 2.63E+00 | 7.11E-01 | 4.84E-03 | -5.49E-01 |
| EP - fresh water kg P eq | 1.56E-02 | 4.65E-02 | 1.46E-05 | -4.01E-03 |
| EP - marine kg P eq | 2.33E-01 | 1.36E-01 | 4.80E-03 | -5.72E-02 |
| EP - country mol N eq | 2.85E+00 | 1.58E+00 | 2.09E-02 | -6.79E-01 |
| POCP kg NMVOC | 1.01E+00 | 5.13E-01 | 7.16E-03 | -2.66E-01 |
| ADPE kg Sb eq | 2.73E-02 | 1.37E-03 | 1.76E-06 | -2.97E-03 |
| ADPF MJ | 3.76E+03 | 5.13E+03 | 9.64E+00 | -1.06E+03 |
| WDP m³ depriv. | -2.63E+01 | 1.63E+01 | 3.48E-01 | -8.11E+00 |
| GWP-GHG kg CO2 eq | 2.23E+02 | 3.25E+02 | 2.47E+01 | -7.82E+01 |
| PM disease inc. | 1.34E-05 | 3.06E-06 | 6.22E-08 | -5.01E-06 |
| IR kBq U-235 eq | 2.97E+02 | 1.88E+01 | 7.77E-03 | -3.58E+00 |
| ETP - FW CTUe | 4.37E+03 | 1.26E+03 | 1.46E+02 | -2.64E+03 |
| HTP - C CTUh | 3.95E-06 | 8.20E-07 | 5.33E-09 | -9.13E-06 |
| HTP - NC CTUh | 2.12E-05 | 2.41E-06 | 4.33E-08 | -3.47E-06 |
| SQP - | 1.21E+03 | 8.67E+02 | 1.23E+01 | -1.68E+02 |
| PERE MJ | 5.40E+02 | 1.22E+03 | 3.58E-01 | -2.40E+02 |
| PERM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT MJ | 5.40E+02 | 1.22E+03 | 3.58E-01 | -2.40E+02 |
| PENRE MJ | 3.76E+03 | 5.13E+03 | 9.64E+00 | -1.06E+03 |
| PENRM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT MJ | 3.76E+03 | 5.13E+03 | 9.64E+00 | -1.06E+03 |
| SM kg | 4.08E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW m³ | -2.54E+01 | 1.61E+01 | 3.60E-01 | -8.52E+00 |
| HWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD kg | 3.24E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR kg | 8.14E+00 | 0.00E+00 | 2.39E+01 | 0.00E+00 |
| MER kg | 4.06E+00 | 0.00E+00 | 7.36E+00 | 0.00E+00 |
| EE (Electrical) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 5.17E+00 |
| EE (Thermal) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 1.38E+02 |
Accessories
Control accessories KaControl
KaController
with one-button operation, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210001
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210001
KaController
with one-button operation, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9017 traffic black, made of resistant PVC, Type 3210006
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210006
KaController
with side operating keys, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210002
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210002

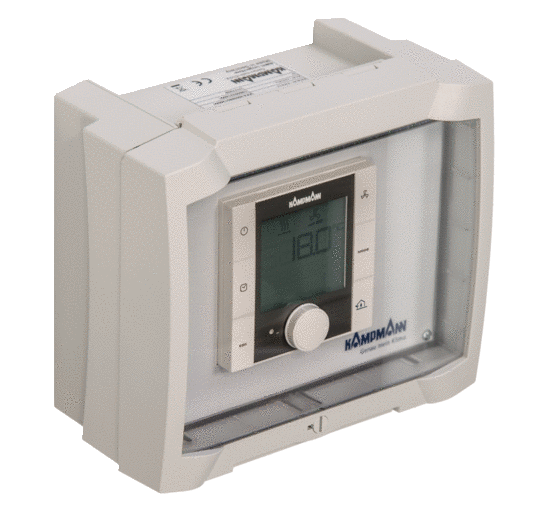

Industry KaController
industrial housing with hinged transparent cover, lockable, with side operating keys, Surface-mounted, Protection class IP 65, Colour grey, made of plastic, Type 3214002
Suitable for: all units with control option KaControl -C1, ProtecTor Door Air Curtains
Suitable for: all units with control option KaControl -C1, ProtecTor Door Air Curtains
Article no.:
196003214002
room temperature sensor
Wall-mounted, Surface-mounted, Protection class IP 30, Colour similar to RAL 9010 pure white, made of plastic, Type 3250110
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250110
Outside temperature sensor/industrial temperature sensor
Surface-mounted, Protection class IP 65, Colour similar to RAL 9010 pure white, Type 3250112
Suitable for: all units with control option KaControl -C1, ProtecTor Door Air Curtains
Suitable for: all units with control option KaControl -C1, ProtecTor Door Air Curtains
Article no.:
196003250112
Clip-on pipe sensor
to detect the medium temperature, Protection class IP 67, Temperature setting range -20 - 70 °C, Colour black, Type 3250115
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250115
KaControl Tableau SEL4.0
with touch terminal, to monitor and control up to 60 Kampmann secondary air units (maximum 25 groups, maximum 6 units per group), 230 V AC, 30 W, Wall-mounted, Protection class IP 54, Colour RAL 7035 grey, Type 3232223
Suitable for: all units with KaControl configuration -C1 in association with Modbus card type 3260101
Suitable for: all units with KaControl configuration -C1 in association with Modbus card type 3260101
Article no.:
196003232223
Serial KNX card
for integration into a KNX/EIB network, interface PCOS00KXN0, Type 3260702
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Article no.:
196003260702
Serial CANbus card
to increase the number of units in a single-circuit system from 7 to a maximum of 30 units, one required per unit, Extension of the cable length from the first to the last unit from 30 m to 500 m, Can only be used with the KaControl -C1 control version!The room temperature cannot be recorded by a room sensor when using CanBus cards., Type 3260301
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003260301
Serial Modbus card
Type 3260101
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Article no.:
196003260101
KaControl visualisation
for the central monitoring and control of air handling units, Type 3210701
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: all units with KaControl configuration -C1 in association with Modbus card type 3260101, 100 Units
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: all units with KaControl configuration -C1 in association with Modbus card type 3260101, 100 Units
Article no.:
196003210701
KaControl visualisation
for the central monitoring and control of air handling units, Type 3210702
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: all units with KaControl configuration -C1 in association with Modbus card type 3260101, 300 Units
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: all units with KaControl configuration -C1 in association with Modbus card type 3260101, 300 Units
Article no.:
196003210702
Valve kits
2-way valve kit
as a straight valve body, Connection 1'', kvs value 3.3 m³/h, Type 31911
Suitable for: all unit heaters
Suitable for: all unit heaters
Article no.:
153000031911
Control shut-off valve
for automatic flow and temperature control, Connection 1'', kvs value 3.1 m³/h, Type 31950
Suitable for: Model size 4 - 5, TOP or Ultra Unit Heaters, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20
Suitable for: Model size 4 - 5, TOP or Ultra Unit Heaters, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20
Article no.:
153000031950
Control shut-off valve
for automatic flow and temperature control, Connection 1'', kvs value 4.1 m³/h, Type 31951
Suitable for: Model size 4 - 6, TOP or Ultra Unit Heaters, Min. Flow volume 400 l/h, max. Flow volume 2500 l/h, DN 25
Suitable for: Model size 4 - 6, TOP or Ultra Unit Heaters, Min. Flow volume 400 l/h, max. Flow volume 2500 l/h, DN 25
Article no.:
153000031951
Valve actuators, supplied loose
Valve actuator kit
Drive T, 24 V AC/DC, 2-point, normally closed, 1.5m connecting line-AEH, PVC, VA10N, 1 W, Protection class III, Protection class IP 54, Cable length 0.12 m, supplied separately, made of Polyamide
Article no.:
1960TS8P04050010B
Repair switch
Repair switch
Enables individual units in a switching group to be decommissioned by voltage disconnection. The thermal contacts are bridged in advance, and subsequently opened on the motor side so that the other units in the group can continue to operate without interruption., EC, Protection class IP 65, 25 A, supplied separately, Type 30160
Suitable for: all unit heaters, air curtains with EC-motors
Suitable for: all unit heaters, air curtains with EC-motors
Article no.:
196000030160
Filter
calculation-relevant accessory
Recirculating air filter element
calculation-relevant accessory
for direct mounting on the unit inlet with recirculation air units, ISO Coarse 45% (G3) filter
Cannot be used with under-ceiling units!
Suitable for: Model size 96
Cannot be used with under-ceiling units!
Suitable for: Model size 96
Article no.:
154000066050
Panel/grille
Recirculating air grille
Grid dimensions 625 x 625 mm, powder coated, Colour RAL 9016 traffic-white
Suitable for: Model size 73 - 96
Suitable for: Model size 73 - 96
Article no.:
154000060988
Components for installation in acoustic grid suspended ceilings
calculation-relevant accessory
Connection frame
calculation-relevant accessory
square, as a transition from the Ultra to the ongoing duct system, sendzimir galvanised
Suitable for: Model size 96, attachment parts with outside frame dimensions (W x H): 700 x 700mm and 700 x 350mm
Suitable for: Model size 96, attachment parts with outside frame dimensions (W x H): 700 x 700mm and 700 x 350mm
Article no.:
198000066002
90-degree reducing elbow
calculation-relevant accessory
extended, square to rectangular, sendzimir galvanised
Suitable for: Model size 96, attachment parts with outside frame dimensions (W x H): 700 x 700mm and 700 x 350mm
Suitable for: Model size 96, attachment parts with outside frame dimensions (W x H): 700 x 700mm and 700 x 350mm
Article no.:
198000066104
90-degree air intake elbow
calculation-relevant accessory
with air intake grille, mounting for filter insert, rectangular, ISO Coarse 45% (G3) filter
Suitable for: Model size 85 - 96, attachment parts with outside frame dimensions (W x H): 600 x 350mm and 700 x 350mm
Suitable for: Model size 85 - 96, attachment parts with outside frame dimensions (W x H): 600 x 350mm and 700 x 350mm
Article no.:
198000060105
90° air intake bend with differential pressure switch
calculation-relevant accessory
with intake grille, filter insert and differential pressure switch for filter monitoring, rectangular, ISO Coarse 45% (G3) filter
Suitable for: Model size 85 - 96
Suitable for: Model size 85 - 96
Article no.:
198000060105D0
Filter insert
calculation-relevant accessory
complete with filter, ISO Coarse 45% (G3) filter
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
Article no.:
198000060126
Replacement filter
for filter insert, ISO Coarse 45% (G3) filter, 1 set = 5 piece(s)
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
Article no.:
198000060127
Additional colours
Surcharge for RAL colour of your choice
matt gloss level
Price per unit.
Suitable for: Ultra Unit Heaters
Price per unit.
Suitable for: Ultra Unit Heaters
Article no.:
154007010022
Downloads
Declarations/Certificates
Certificate ISO 50001:2018
PDF
(194 kB)
Certificate ISO 9001:2008
PDF
(118 kB)
EPD Ultra size 96
PDF
(1.3 MB)
EPD Ultra size 85
PDF
(1.3 MB)
EPD Ultra size 84
PDF
(1.3 MB)
EPD Ultra size 73
PDF
(1.3 MB)
UKCA Declaration Unit Heater
PDF
(450 kB)
ErP data sheet 2016-2281 for Ultra unit heater
PDF
(97 kB)
ErP data sheet 1253-2014 for Ultra unit heater
PDF
(233 kB)
Ultra size 96 digital EPD database
Cross-product information
Products
PDF
(10.7 MB)
Technical catalogues
KaControl MC - Multi Connect
PDF
(2.2 MB)
Ultra unit heaters
PDF
(7.5 MB)
Manuals
KaControl MC - Multi Connect
PDF
(1.3 MB)
Ultra unit heaters
PDF
(4.8 MB)
Ultra unit heaters, brief instructions
PDF
(2.1 MB)
CAD-Drawings
Ultra unit heaters, heating [mm]
PDF
(354 kB)
Ultra unit heaters, heating or cooling [mm]
PDF
(318 kB)
Ultra unit heaters, heating [Inch]
PDF
(329 kB)
Ultra unit heaters, heating or cooling [Inch]
PDF
(292 kB)
Ultra unit heaters, heating [Inch]
DXF
(10.8 MB)
Ultra unit heaters, heating or cooling [Inch]
DWG
(1.4 MB)
Ultra unit heaters, heating [Inch]
DWG
(1.4 MB)
Ultra unit heaters, heating or cooling [mm]
DWG
(1.9 MB)
Ultra unit heaters, heating [mm]
DWG
(2 MB)
Ultra unit heaters, heating or cooling [Inch]
DXF
(10.3 MB)
Ultra unit heaters, heating [mm]
DXF
(14.8 MB)
Ultra unit heaters, heating or cooling [mm]
DXF
(14.3 MB)
BIM data (Building Information Modeling)
Kampmann Group BIM data
Installation plans
Ultra, KaControl version
PDF
(501 kB)
